Non-insulated Tin Plated Open Barrel Terminals Loose Piece

View pictures

features:

Operating temp: 10 °C~105 °C
Material: Brass
Plating: Electro tin plated
Prt nr. Wire range Product image Product image Tabsize/ø Dimple/locking tab UL Datasheet
01-008-ML-TA 0.5~1.0 2.8 x 0.8 dimple hole/locking tab view
01-006-ML-TA 0.5~1.0 4.8 x 0.5 dimple hole/locking tab view
01-001-ML-TA 0.5~1.0 6.3 x 0.8 dimple hole/locking tab Y view
01-002-ML-TA 1.0~2.5 6.3 x 0.8 dimple hole/locking tab Y view
01-003-ML-TA 2.5~6.0 6.3 x 0.8 dimple hole/locking tab Y view
01-007-ML-TA 0.5~1.0 2.8 x 0.8 dimple hole view
01-004-ML-TA 0.5~1.0 4.8 x 0.5 dimple hole Y view
01-005-ML-TA 0.75~2.0 4.8 x 0.5 dimple hole Y view
02-010-ML-TA 0.5~1.0 2.8 x 0.5 dimple Y view
02-011-ML-TA 0.5~1.0 2.8 x 0.8 dimple Y view
02-012-ML-TA 0.5~1.0 4.8 x 0.5 dimple Y view
02-013-ML-TA 0.5~1.0 4.8 x 0.8 dimple Y view
02-001-ML-TA 0.5~1.0 6.3 x 0.8 dimple
pre-rolled		 Y view
02-014-ML-TA 1.0~2.5 4.8 x 0.5 dimple Y view
02-113-ML-TA 1.0~2.5 4.8 x 0.8 dimple Y view
02-002-ML-TA  1.0~2.5 6.3 x 0.8 dimple
pre-rolled		 Y view

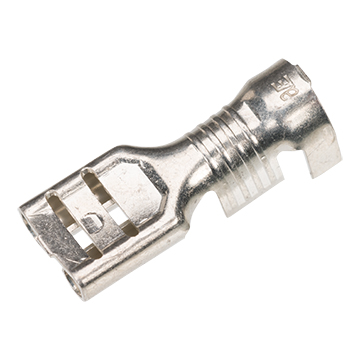

02-953-ML-TA 1.0~2.5 9.5 x 1.2 dimple view
02-003-ML-TA  2.5~6.0 6.3 x 0.8 dimple
pre-rolled		 Y view
L8240-4050T 0.5~1.0 2.8 x 0.5 locking tab view
02-285-ML-TA 0.5~1.0 2.8 x 0.5 locking tab view
02-288-ML-TA 0.5~1.0 2.8 x 0.8 locking tab view
02-485-ML-TA 0.5~1.0 4.8 x 0.5 locking tab view
02-488-ML-TA 0.5~1.0 4.8 x 0.8 locking tab view
02-005-ML-TA  0.5~1.0 6.3 x 0.8 dimple/locking tab
pre-rolled		 Y view
02-486-ML-TA 1.0~2.5 4.8 x 0.5 locking tab view
02-489-ML-TA 1.0~2.5 4.8 x 0.8 locking tab view
02-006-ML-TA 1.0~2.5 6.3 x 0.8 locking tab Y view
02-007-ML-TA  1.0~2.5 6.3 x 0.8 dimple/locking tab
pre-rolled		 Y view
02-954-ML-TA 1.0~2.5 9.5 x 1.2 locking tab view
02-009-ML-TA  2.5~6.0 6.3 x 0.8 dimple/locking tab
pre-rolled		 Y view
07-001-ML-TA  0.5~1.0 6.3x0.8 dimple view
07-002-ML-TA  0.75~1.5 6.3x0.8 dimple view
10-001-ML-TA  0.5~1.0 6.3 x 0.8 dimple Y view
10-002-ML-TA  1.0~2.5 6.3 x 0.8 dimple Y view
10-004-ML-TA 1.0~2.5 8.0x0.8 locking tab view
03-002-ML-TA  0.5~1.0 ø 4.3 - Y view
03-003-ML-TA  0.5~1.0 ø 5.3 - Y view
03-004-ML-TA  0.5~1.0 ø 6.4 - Y view
03-001-ML-TA 0.75-2.0 ø 3.2 - Y view
03-005-ML-TA 1.0~2.5 ø 3.2 - Y view
03-006-ML-TA  1.0~2.5 ø 4.3 - Y view
03-007-ML-TA 1.0~2.5 ø 5.3 - Y view
03-008-ML-TA  1.0~2.5 ø 6.4 - Y view
03-009-ML-TA  1.0~2.5 ø 8.5 - view
03-021-ML-TA 1.0~2.5 ø 9.5 - Y view

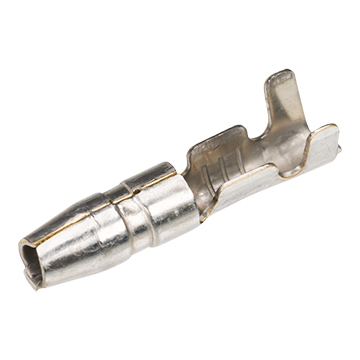

05-001-ML-TA  0.5~2.0 ø 3.5 - view
05-002-ML-TA  0.5~2.0 ø 4.0 - view
06-001-ML-TA  0.5~2.0 ø 3.5 - view
06-002-ML-TA  0.5~2.0 ø 4.0 - view
