24V 2x7 Poles

View pictures

Prt nr. Product image Plugs Strands Coil Inner Ø Outer Ø Working length Max. perm. length Remarks
ADTK010 7 Pole N type, aluminum 6 x 1,0 mm²
1 x 1,5 mm²		 TPU 27 ± 5 mm 38 ± 5 mm 3,7 mtrs ± 50 mm 4 mtrs ± 50 mm ISO 1185
ADTK010A 7 Pole N type, aluminum 6 x 1,0 mm²
1 x 1,5 mm²		 TPU 27 ± 5 mm 38 ± 5 mm 3,7 mtrs ± 50 mm 4 mtrs ± 50 mm Metal spring cable support
ISO 1185
ADTK710A 7 Pole N type, aluminum 6 x 0,75 mm²
1 x 1,0 mm²		 TPU 27 ± 5 mm 38 ± 5 mm 3,7 mtrs ± 50 mm 4 mtrs ± 50 mm Metal spring cable support
ISO 1185
ADTK012 7 Pole N type, nylon 6 x 1,0 mm²
1 x 1,5 mm²		 TPU 27 ± 5 mm 38 ± 5 mm 3,7 mtrs ± 50 mm 4 mtrs ± 50 mm ISO 1185
ADTK712 7 Pole N type, nylon 6 x 0,75 mm²
1 x 1,0 mm²		 TPU 27 ± 5 mm 38 ± 5 mm 4,2 mtrs ± 50 mm 4,5 mtrs ± 50 mm ISO 1185
ADTK012B 7 Pole N type, nylon 6 x 1,0 mm²
1 x 1,5 mm²		 TPU 27 ± 5 mm 38 ± 5 mm 3,7 mtrs ± 50 mm 4 mtrs ± 50 mm Moulded plugs
ISO 1185
ADTK011 7 Pole S type, aluminum 6 x 1,0 mm²
1 x 1,5 mm²		 TPU 27 ± 5 mm 38 ± 5 mm 3,7 mtrs ± 50 mm 4 mtrs ± 50 mm ISO 3731
ADTK011A 7 Pole S type, aluminum 6 x 1,0 mm²
1 x 1,5 mm²		 TPU 27 ± 5 mm 38 ± 5 mm 3,7 mtrs ± 50 mm 4 mtrs ± 50 mm Metal spring cable support
ISO 3731
ADTK711A 7 Pole S type, aluminum 6 x 0,75 mm²
1 x 1,0 mm²		 TPU 27 ± 5 mm 38 ± 5 mm 4,2 mtrs ± 50 mm 4,5 mtrs ± 50 mm ISO 3731
ADTK013 7 Pole S type, nylon 6 x 1,0 mm²
1 x 1,5 mm²		 TPU 27 ± 5 mm 38 ± 5 mm 3,7 mtrs ± 50 mm 4 mtrs ± 50 mm ISO 3731
ADTK713 7 Pole S type, nylon 6 x 0,75 mm²
1 x 1,0 mm²		 TPU 27 ± 5 mm 38 ± 5 mm 3,7 mtrs ± 50 mm 4 mtrs ± 50 mm ISO 3731
ADTK011D 7 Pole S type, nylon 6 x 1,0 mm²
1 x 1,5 mm²		 TPU 27 ± 5 mm 38 ± 5 mm 3,7 mtrs ± 50 mm 4 mtrs ± 50 mm Moulded plugs
ISO 3731

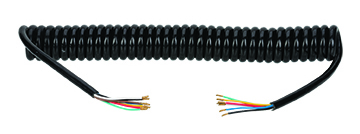

SPKA350 12-24V spiral cable without plugs 6 x 0.75 mm²
1 x 1.0 mm²		 3.5 mtrs

Neem contact op met 1 van onze specialisten.
