Non-insulated Tin Plated Open Barrel Terminals On Strip

View pictures

features:

Operating temp: 10 °C~105 °C
Material: Brass
Plating: Electro tin plated



Prt nr. Wire range Product image Product image Tabsize/ø Dimple/locking tab UL Datasheet

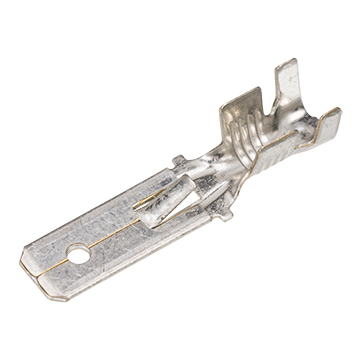

01-001-MS-TA 0,5~1,0 6.3 x 0.8 dimple hole/locking tab view
01-002-MS-TA 1,0~2,5 6.3 x 0.8 dimple hole/locking tab Y view
01-003-MS-TA 2,5~6,0 6.3 x 0.8 dimple hole/locking tab Y view
02-010-MS-TA 0,5~1,0 2.8 x 0.5 dimple Y view
02-011-MS-TA 0,5~1,0 2.8 x 0.8 dimple Y view
02-012-MS-TA 0,5~1,0 4.8 x 0.5 dimple Y view
02-013-MS-TA 0,5~1,0 4.8 x 0.8 dimple Y view
02-001-MS-TA 0,5~1,0 6.3 x 0.8 dimple Y view
02-002-MS-TA  1,0~2,5 6.3 x 0.8 dimple Y view
02-003-MS-TA  2,5~6,0 6.3 x 0.8 dimple Y view
02-005-MS-TA  0,5~1,0 6.3 x 0.8 dimple/locking tab Y view

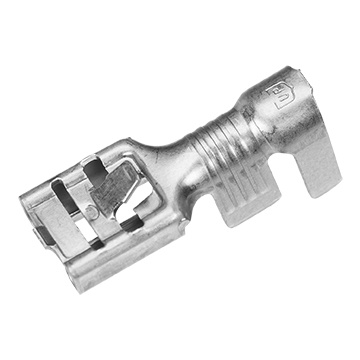

02-007-MS-TA  1,0~2,5 6.3 x 0.8 dimple/locking tab Y view
02-009-MS-TA  2,5~6,0 6.3 x 0.8 dimple/locking tab Y view
07-001-MS-TA  0,5~1,0 6.3x0.8 dimple/dimple hole view
07-002-MS-TA  0,75~1,5 6.3x0.8 dimple/dimple hole view
10-001-MS-TA  0,5~1,0 6.3 x 0.8 dimple Y view
10-002-MS-TA  1,0~2,5 6.3 x 0.8 dimple Y view
03-002-MS-TA  0,5~1,0 ø 4.3 - Y view
03-003-MS-TA  0,5~1,0 ø 5.3 - Y view
03-004-MS-TA  0,5~1,0 ø 6.4 - Y view
03-006-MS-TA  1,0~2,5 ø 4.3 - Y view
03-007-MS-TA 1,0~2,5 ø 5.3 - Y view
03-008-MS-TA  1,0~2,5 ø 6.4 - Y view
09-001-MS-TA  0,5~0,75 - - view
09-002-MS-TA  0,75~2,0 - - view
05-001-MS-TA  0,5~2,0 ø 3.5 - view
05-002-MS-TA  0,5~2,0 ø 4.0 - view
06-001-MS-TA  0,5~2,0 ø 3.5 - view
06-002-MS-TA  0,5~2,0 ø 4.0 - view

Neem contact op met 1 van onze specialisten.
