PVC Insulated Blade Terminals Easy Entry Copper Sleeve

View pictures

features:

Max. electrical rating: 600 Volts
Max. operating temp: 75 °C.
Material: Copper
Plating: Electro tin plated
Insulation: PVC
Tolerance: ± 0.2 ~ 1 mm
  • RoHS and REACH compliant

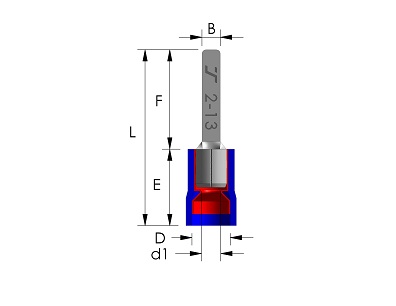

Prt nr. Wirerange mm² Color B F L E D d1 UL Packed Datasheet
REFVDPC 1.25-PF10 0.5~1.5  red 2.3 10.0 21.3 11.3 4.2 1.7 10 x 100 view
REFVDPC 1.25-P 0.5~1.5  red 2.2 18.0 29.3 11.3 4.2 1.7 10 x 100 view
REFVDPC 2-PF9 1.5~2.5  blue 2.8 9.0 20.5 11.5 5.0 2.3 10 x 100 view
REFVDPC 2-PF10 1.5~2.5  blue 2.3 10.0 21.5 11.5 5.0 2.3 10 x 100 view
REFVDPC 2-PF13 1.5~2.5  blue 2.4 14.0 25.5 11.5 5.0 2.3 10 x 100 view
REFVDPC 2-P 1.5~2.5  blue 2.2 18.0 29.5 11.5 5.0 2.3 10 x 100 view
REFVDPC 5.5-PF10 4~6  yellow 2.8 10.0 24.0 14.0 6.8 3.4 10 x 100 view
REFVDPC 5.5-P 4~6  yellow 4.5 18.0 32.0 14.0 6.8 3.4 10 x 100 view
