PVC Insulated Piggy Back Disconnectors Standard
View pictures
features:
| Max. electrical rating: | 300 Volts |
| Max. operating temp: | 75 °C. |
| Material: | Copper |
| Plating: | Electro tin plated |
| Insulation: | PVC |
| Tolerance: | Please see datasheet |
- RoHS and REACH compliant

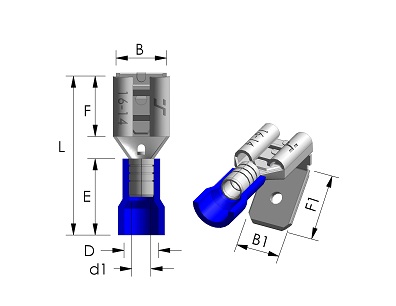

| Prt nr. | Wirerange mm² | Color | Tab size | B | B1 | F | F1 | L | E | D | d1 | UL | Packed | Datasheet |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| RBFVDFM 1.25-250A | 0.5~1.5 | red | 6.3x0.8 | 6.7 | 6.4 | 8.0 | 8.2 | 21.0 | 10.0 | 3.3 | 1.7 | 10 x 100 | view | |
| RBFVDFM 2-250B | 1.5~2.5 | blue | 6.3x0.8 | 6.7 | 6.4 | 8.0 | 8.2 | 21.0 | 10.0 | 4.1 | 2.3 | 10 x 100 | view | |
| RBFVDFM 5.5-250A | 4~6 | yellow | 6.3x0.8 | 6.7 | 6.4 | 8.0 | 8.2 | 24.5 | 13.0 | 5.6 | 3.4 | 10 x 100 | view |
