PVC Insulated Male Disconnectors Straight Copper Sleeve
View pictures
features:
| Max. electrical rating: | 300 Volts |
| Max. operating temp: | 75 °C. |
| Material: | Copper |
| Plating: | Electro tin plated |
| Insulation: | PVC |
- RoHS compliant

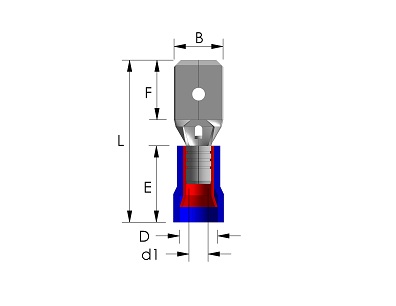

| Prt nr. | Wirerange mm² | Color | Tab size | B | F | L | E | D | d1 | UL | Packed | Datasheet |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| RBFVDDM 1.25-110A5 | 0.5~1.5 | red | 2.8x0.5 | 2.8 | 7.6 | 18.7 | 10.0 | 3.9 | 1.7 | Y | 10 x 100 | view |
| RBFVDDM 1.25-110A8 | 0.5~1.5 | red | 2.8x0.8 | 2.8 | 6.6 | 18.7 | 10.0 | 3.9 | 1.7 | Y | 10 x 100 | view |
| RBFVDDM 1.25-187A5 | 0.5~1.5 | red | 4.8x0.5 | 4.8 | 7.6 | 19.2 | 10.0 | 3.9 | 1.7 | Y | 10 x 100 | view |
| RBFVDDM 1.25-187A8 | 0.5~1.5 | red | 4.8x0.8 | 4.8 | 6.6 | 19.2 | 10.0 | 3.9 | 1.7 | Y | 10 x 100 | view |
| RBFVDDM 1.25-250 | 0.5~1.5 | red | 6.3x0.8 | 6.3 | 7.6 | 20.8 | 10.0 | 3.9 | 1.7 | Y | 10 x 100 | view |
| RBFVDDM 2-110A5 | 1.5~2.5 | blue | 2.8x0.5 | 2.8 | 7.6 | 18.7 | 10.0 | 4.7 | 2.3 | Y | 10 x 100 | view |
| RBFVDDM 2-110A8 | 1.5~2.5 | blue | 2.8x0.8 | 2.8 | 6.6 | 18.7 | 10.0 | 4.7 | 2.3 | Y | 10 x 100 | view |
| RBFVDDM 2-187A5 | 1.5~2.5 | blue | 4.8x0.5 | 4.8 | 7.6 | 19.2 | 10.0 | 4.7 | 2.3 | Y | 10 x 100 | view |
| RBFVDDM 2-187A8 | 1.5~2.5 | blue | 4.8x0.8 | 4.8 | 6.6 | 19.2 | 10.0 | 4.7 | 2.3 | Y | 10 x 100 | view |
| RBFVDDM 2-250 | 1.5~2.5 | blue | 6.3x0.8 | 6.3 | 7.6 | 20.8 | 10.0 | 4.7 | 2.3 | Y | 10 x 100 | view |
| RBFVDDM 5.5-250 | 4~6 | yellow | 6.3x0.8 | 6.3 | 7.6 | 24.0 | 13.0 | 6.3 | 3.4 | Y | 10 x 100 | view |
