PVC Half-Insulated Female Disconnectors Standard
View pictures
features:
| Max. electrical rating: | 300 Volts |
| Max. operating temp: | 75 °C. |
| Material: | Brass |
| Plating: | Electro tin plated |
| Insulation: | PVC |
- RoHS compliant

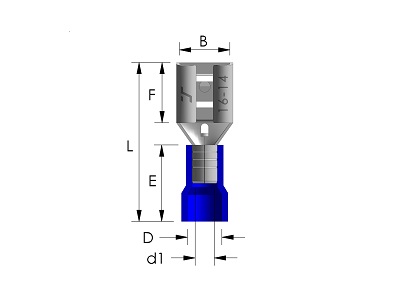

| Prt nr. | Wirerange mm² | Color | Tab size | B | F | L | E | D | d1 | UL | Packed | Datasheet |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| RBFVDF 1.25-110A5 | 0.5~1.5 | red | 2.8x0.5 | 3.2 | 6.5 | 18.8 | 10 | 3.5 | 1.7 | 10 x 100 | view | |
| RBFVDF 1.25-110A8 | 0.5~1.5 | red | 2.8x0.8 | 3.2 | 6.5 | 18.8 | 10 | 3.5 | 1.7 | 10 x 100 | view | |
| RBFVDF 1.25-187A5 | 0.5~1.5 | red | 4.8x0.5 | 5.0 | 6.4 | 19.2 | 10 | 3.5 | 1.7 | 10 x 100 | view | |
| RBFVDF 1.25-187A8 | 0.5~1.5 | red | 4.8x0.8 | 5.0 | 6.4 | 19.2 | 10 | 3.5 | 1.7 | 10 x 100 | view | |
| RBFVDF 1.25-250A | 0.5~1.5 | red | 6.3x0.8 | 6.6 | 7.2 | 20.8 | 10 | 3.5 | 1.7 | 10 x 100 | view | |
| RBFVDF 2-110A5 | 1.5~2.5 | blue | 2.8x0.5 | 3.2 | 6.5 | 19.2 | 10 | 4.1 | 2.3 | 10 x 100 | view | |
| RBFVDF 2-110A8 | 1.5~2.5 | blue | 2.8x0.8 | 3.2 | 6.5 | 19.2 | 10 | 4.1 | 2.3 | 10 x 100 | view | |
| RBFVDF 2-187A5 | 1.5~2.5 | blue | 4.8x0.5 | 5.0 | 6.4 | 19.2 | 10 | 4.1 | 2.3 | 10 x 100 | view | |
| RBFVDF 2-187A8 | 1.5~2.5 | blue | 4.8x0.8 | 5.0 | 6.4 | 19.2 | 10 | 4.1 | 2.3 | 10 x 100 | view | |
| RBFVDF 2-250A | 1.5~2.5 | blue | 6.3x0.8 | 6.6 | 7.2 | 20.8 | 10 | 4.1 | 2.3 | 10 x 100 | view | |
| RBFVDF 2-312A | 1.5~2.5 | blue | 8.0x0.8 | 8.2 | 10.2 | 23.0 | 10 | 4.1 | 2.3 | 10 x 100 | view | |
| RBFVDF 5.5-250A | 4~6 | yellow | 6.3x0.8 | 6.6 | 7.2 | 23.8 | 13 | 5.6 | 3.4 | 10 x 100 | view | |
| RBFVDF 5.5-375A | 4~6 | yellow | 9.4x1.2 | 10.0 | 12.0 | 28.6 | 13 | 5.6 | 3.4 | 10 x 100 | view |
