PVC Fully-insulated Female Disconnectors Standard

View pictures

features:

Max. electrical rating: 300 Volts
Max. operating temp: 75 °C.
Material: Brass
Plating: Electro tin plated
Insulation: PVC
  • RoHS compliant

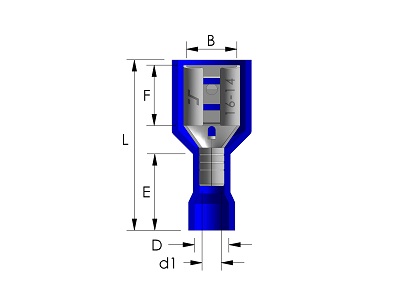

Prt nr. Wirerange mm² Color Tab size B F L E D d1 UL Packed Datasheet
RBLVDF 1.25-250A 0.5~1.5  red 6.3x0.8  6.6 7.2  22.8 10.5 3.5 1.7 10 x 100 view
RBLVDF 2-250A 1.5~2.5  blue 6.3x0.8  6.6 7.2  22.0 10.5 4.3 2.3 10 x 100 view
