Nylon Insulated Ring Terminals DIN 46237 Brazed Seam
View pictures
features:
| Max. electrical rating: | 600 Volts |
| Max. operating temp: | 105 °C. |
| Material: | Copper |
| Plating: | Electro tin plated |
| Insulation: | Nylon |
- RoHS compliant
- Halogen free

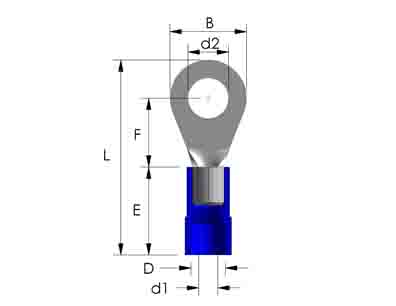

| Prt nr. | Wirerange mm² | Color | d2 | B | F | L | E | D | d1 | UL | Packed | Datasheet |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| EFN 1.25-3DINBS | 0.5~1.5 | red | 3.2 | 6.0 | 6.3 | 19.7 | 10.7 | 3.9 | 1.7 | Y | 10 x 100 | view |
| EFN 1.25-M3DINBS | 0.5~1.5 | red | 3.7 | 6.0 | 6.3 | 19.7 | 10.7 | 3.9 | 1.7 | Y | 10 x 100 | view |
| EFN 1.25-4DINBS | 0.5~1.5 | red | 4.3 | 8.0 | 7.3 | 21.7 | 10.7 | 3.9 | 1.7 | Y | 10 x 100 | view |
| EFN 1.25-5DINBS | 0.5~1.5 | red | 5.3 | 10.0 | 8.3 | 23.7 | 10.7 | 3.9 | 1.7 | Y | 10 x 100 | view |
| EFN 1.25-6DINBS | 0.5~1.5 | red | 6.5 | 11.0 | 10.3 | 26.2 | 10.7 | 3.9 | 1.7 | Y | 10 x 100 | view |
| EFN 1.25-8DINBS | 0.5~1.5 | red | 8.4 | 14.0 | 12.3 | 29.7 | 10.7 | 3.9 | 1.7 | Y | 10 x 100 | view |
| EFN 1.25-10DINBS | 0.5~1.5 | red | 10.5 | 18.0 | 14.3 | 33.7 | 10.7 | 3.9 | 1.7 | Y | 10 x 100 | view |
| EFN 2-S3.3DINBS | 1.5~2.5 | blue | 3.2 | 6.0 | 6.3 | 19.7 | 10.7 | 4.5 | 2.3 | Y | 10 x 100 | view |
| EFN 2-S3DINBS | 1.5~2.5 | blue | 3.7 | 6.0 | 6.3 | 19.7 | 10.7 | 4.5 | 2.3 | Y | 10 x 100 | view |
| EFN 2-4DINBS | 1.5~2.5 | blue | 4.3 | 8.0 | 7.3 | 21.7 | 10.7 | 4.5 | 2.3 | Y | 10 x 100 | view |
| EFN 2-5DINBS | 1.5~2.5 | blue | 5.3 | 10.0 | 8.8 | 24.7 | 10.7 | 4.5 | 2.3 | Y | 10 x 100 | view |
| EFN 2-6DINBS | 1.5~2.5 | blue | 6.5 | 11.0 | 11.3 | 27.2 | 10.7 | 4.5 | 2.3 | Y | 10 x 100 | view |
| EFN 2-8DINBS | 1.5~2.5 | blue | 8.4 | 14.0 | 12.3 | 29.7 | 10.7 | 4.5 | 2.3 | Y | 10 x 100 | view |
| EFN 2-10DINBS | 1.5~2.5 | blue | 10.5 | 18.0 | 13.8 | 33.2 | 10.7 | 4.5 | 2.3 | Y | 10 x 100 | view |
| EFN 2-12DINBS | 1.5~2.5 | blue | 13.0 | 18.0 | 15.3 | 34.7 | 10.7 | 4.5 | 2.3 | Y | 10 x 100 | view |
| EFN 5.5-4DINBS | 4~6 | yellow | 4.3 | 8.0 | 8.3 | 25.0 | 12.7 | 6.4 | 3.4 | Y | 10 x 100 | view |
| EFN 5.5-5DINBS | 4~6 | yellow | 5.3 | 10.0 | 9.3 | 26.7 | 12.7 | 6.4 | 3.4 | Y | 10 x 100 | view |
| EFN 5.5-6DINBS | 4~6 | yellow | 6.5 | 11.0 | 10.3 | 27.7 | 12.7 | 6.4 | 3.4 | Y | 10 x 100 | view |
| EFN 5.5-8DINBS | 4~6 | yellow | 8.4 | 14.0 | 13.3 | 32.7 | 12.7 | 6.4 | 3.4 | Y | 10 x 100 | view |
| EFN 5.5-10DINBS | 4~6 | yellow | 10.5 | 18.0 | 15.3 | 36.7 | 12.7 | 6.4 | 3.4 | Y | 10 x 100 | view |
| EFN 5.5-12DINBS | 4~6 | yellow | 13.0 | 18.0 | 15.3 | 36.7 | 12.7 | 6.4 | 3.4 | Y | 10 x 100 | view |
