Female Multi-connectors 63

features:

Material:

Nylon

For female disconnectors tabsize 6.3 x 0.8 mm:

02-005-ML-TA (tin plated) 02-005-ML-ZA (natural) 0.5~1.0 mm²

02-007-ML-TA (tin plated) 02-007-ML-ZA (natural) 1.0~2.5 mm²

02-009-ML-TA (tin plated) 02-009-ML-ZA (natural) 2.5~6.0 mm²

Prt nr.	Tab size	Poles	Product image	Product image	Datasheet

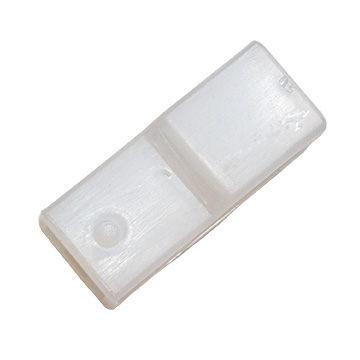

HF-1	6.3 x 0.8	1			view

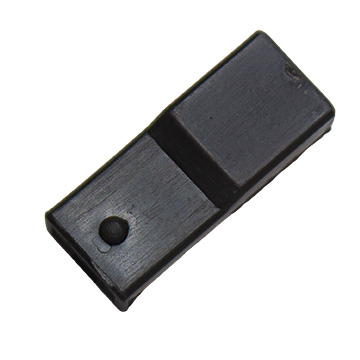

HF-1Z	6.3 x 0.8	1			view

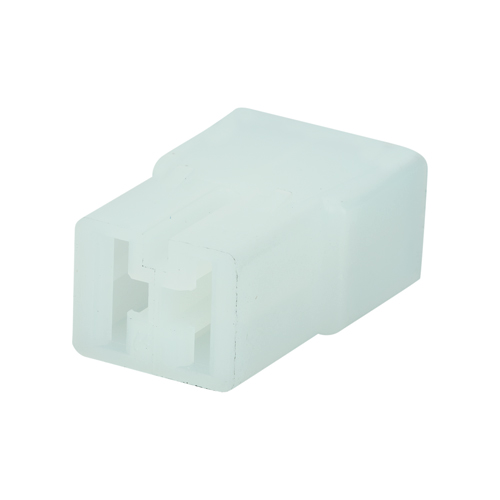

HF-2	6.3 x 0.8	2		HF2-3	view

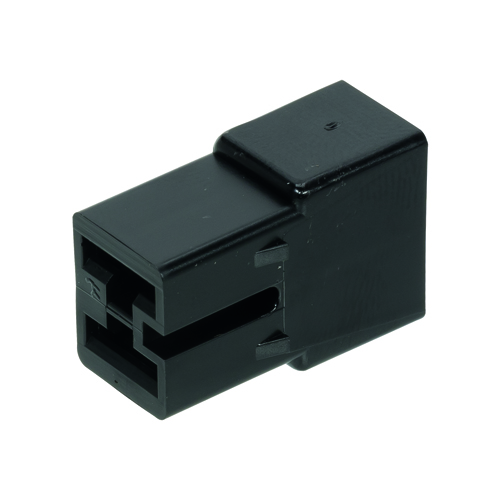

HF-2Z	6.3 x 0.8	2			view

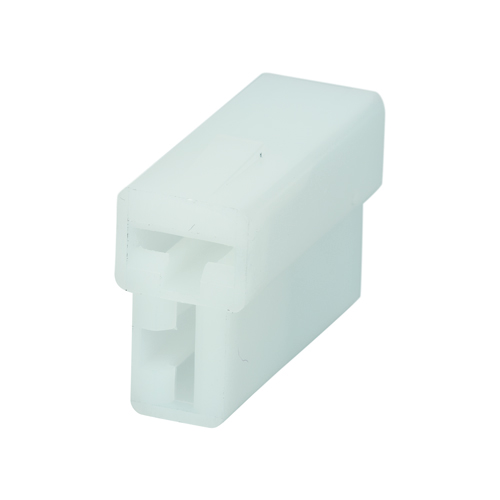

HF-2T	6.3 x 0.8	2		HF2T-3	view

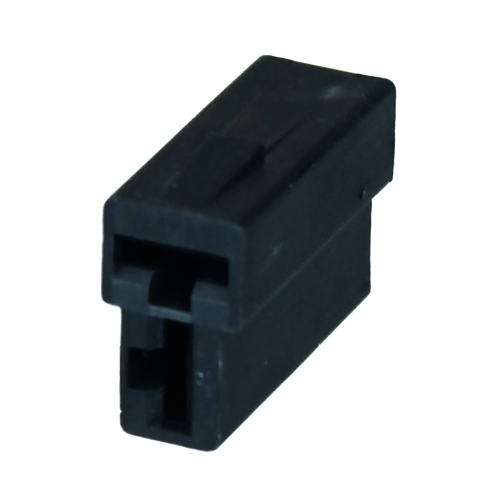

HF-2TZ	6.3 x 0.8	2		HF2TZ-3	view

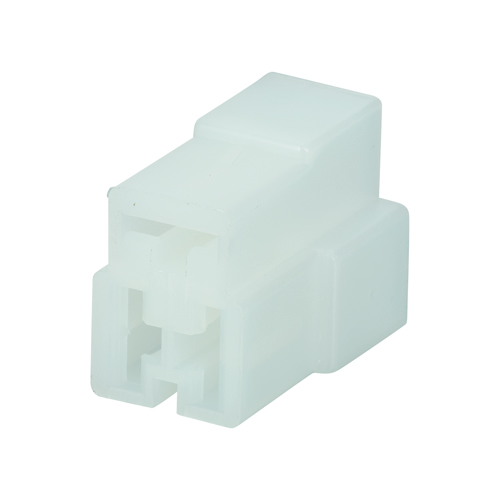

HF-3	6.3 x 0.8	3		HF3-3	view

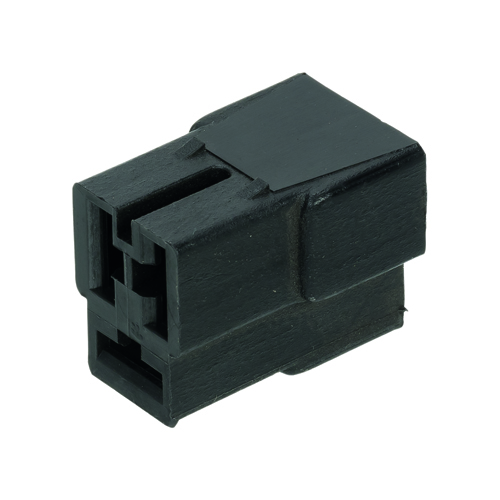

HF-3Z	6.3 x 0.8	3			view

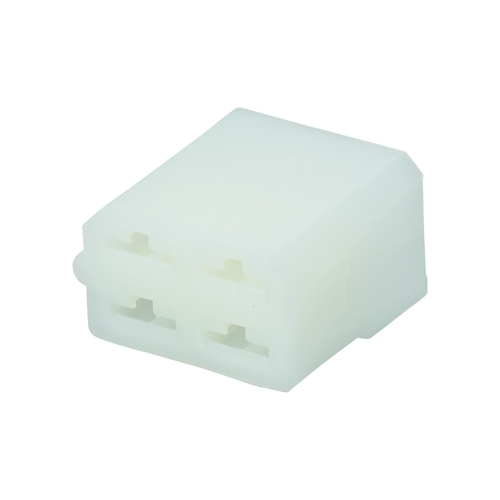

HF-4	6.3 x 0.8	4		HF4-3	view

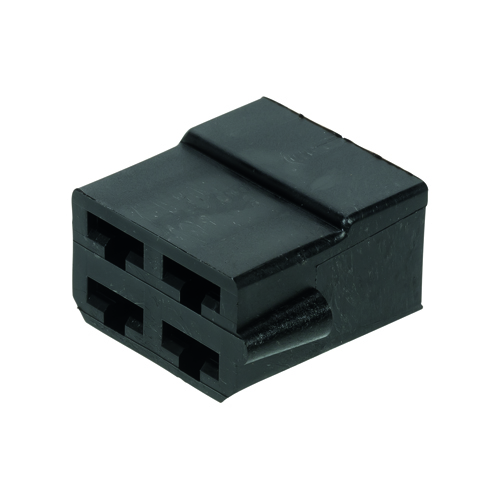

HF-4Z	6.3 x 0.8	4			view

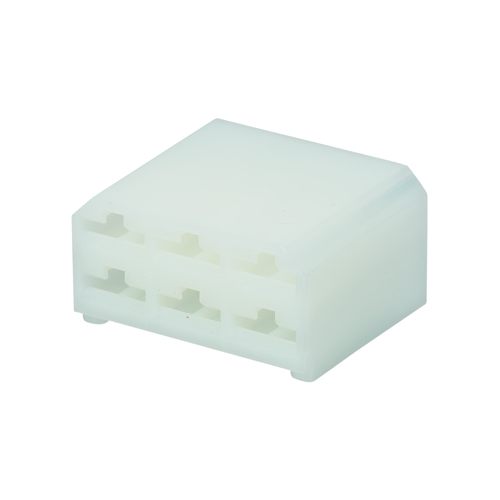

HF-6	6.3 x 0.8	6		HF6-3	view

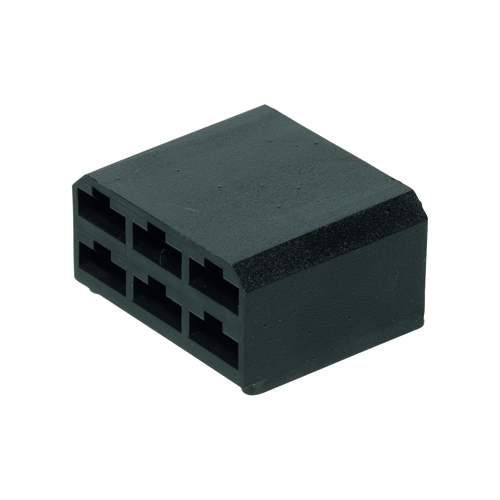

HF-6Z	6.3 x 0.8	6			view

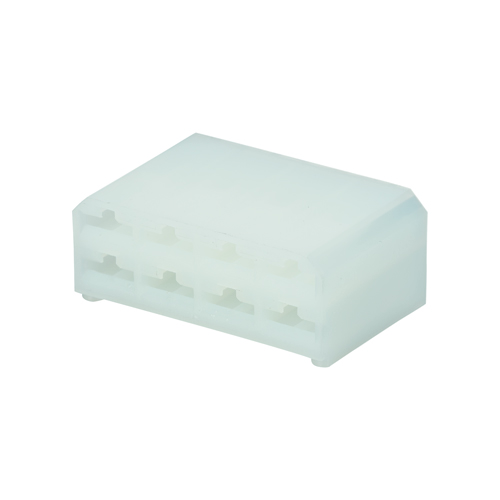

HF-8	6.3 x 0.8	8			view

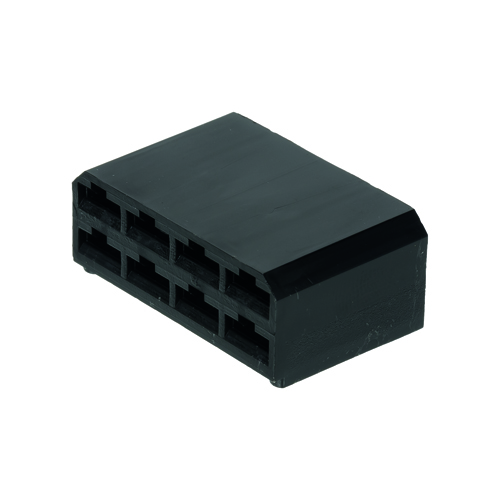

HF-8Z	6.3 x 0.8	8			view

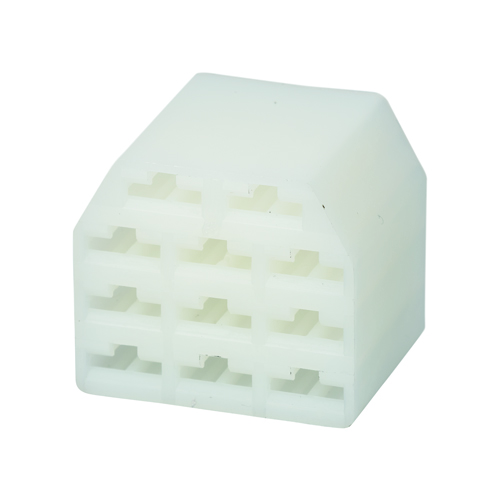

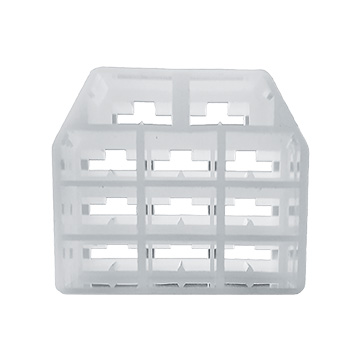

HF-11	6.3 x 0.8	11	HF11-2	HF11-3	view

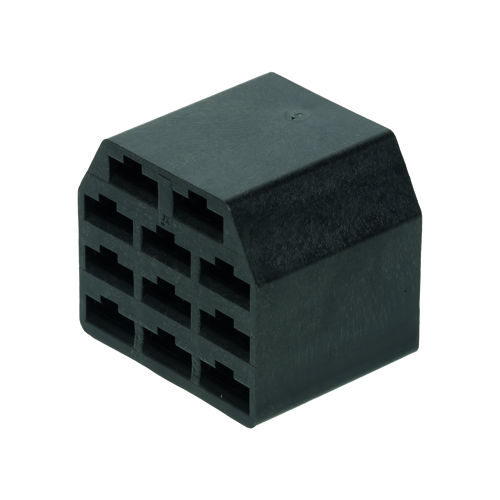

HF-11Z	6.3 x 0.8	11			view
