Catalogue
Parcourir nos produits

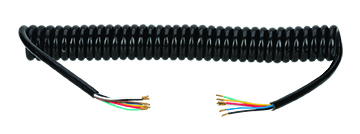

12V Coils

View pictures

Prt nr. Product image Plugs Strands Coil Inner Ø Outer Ø Working length Max. perm. length Remarks
ADTK014 13 Pole Nylon 12 x 0.5 mm²
1 x 1 mm²
TPU 3 mtrs 4 mtrs ISO 11446
ADTK015 7 Pole aluminum 6 x 0.75 mm²
1 x 1 mm²
TPU 25 ± 5 mm 35 ± 5 mm 3.5 mtrs ± 50 mm 4 mtrs ± 50 mm ISO 1724
ADTK016 7 Pole nylon 6 x 0.75 mm²
1 x 1 mm²
TPU 25 ± 5 mm 35 ± 5 mm 3.5 mtrs ± 50 mm 4 mtrs ± 50 mm ISO 1724
ADTK017 7 Pole aluminum 7 x 0.5 mm² TPU - - 3 mtrs ISO 1724
ADTK018 7 Poly nylon 7 x 0.5 mm² TPU - - 3 mtrs 1 x socket
1 x plug
ISO 1724
ADTK022 7 Pole plastic 6 x 1 mm²
1 x 1.5 mm²
PUR 25 ± 5 mm 35 ± 5 mm 3.2 mtrs ± 50 mm 3.5 mtrs ± 50 mm 1 x socket
1 x plug
ISO 1724

Contact our specialists.
