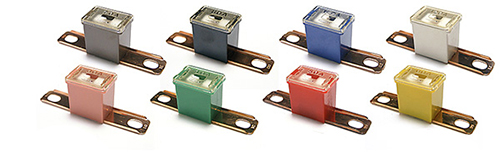

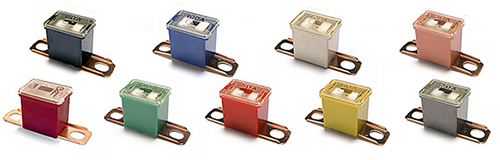

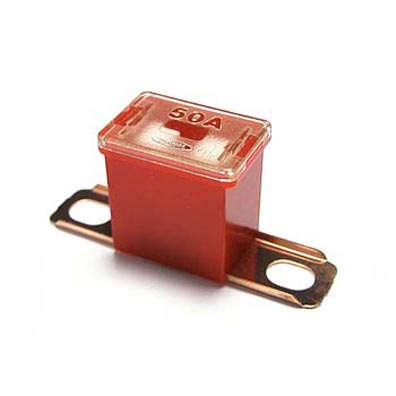

japOTO C - CS series horizontal bolt-on

Meets international specs, complies to ISO 8820-4, JASO D612 and other standards
Element visibility from top through transparent cover
Robust/sturdy body construction
Safe and highly reliable operation through ceramic heat sink construction (C)
Self extinguishing, color coded body materials
High temperature resistive plastics used for fuse body materials
Secure and controlled time-delayed functioning with purpose designed elements
Integrated, endurable, Cu-alloy blades
Used in Japanese, European, American and Korean designed vehicles

Prt nr.	Color	Rating A	Rating V	Screw	Datasheet
CBF030C	pink	30	32	M5	view
CBF040C	green	40	32	M5	view
CBF050C	red	50	32	M5	view
CBF060C	yellow	60	32	M5	view
CBF070C	brown	70	32	M5	view
CBF080C	black	80	32	M5	view
CBF100C	blue	100	32	M5	view
CBF120C	white	120	32	M5	view
CBF030CS	pink	30	58	M5	view
CBF040CS	green	40	58	M5	view
CBF050CS	red	50	58	M5	view
CBF060CS	yellow	60	58	M5	view
CBF070CS	brown	70	58	M5	view
CBF080CS	black	80	58	M5	view
CBF100CS	blue	100	58	M5	view
CBF120CS	white	120	58	M5	view
CBF140CS	darkred	140	58	M5	view
