Catalogue
Browse our products

Terminals and Caps

View pictures

Prt nr. Product image Description Datasheet
ACPK003P-8 POS terminal
Nautical type
With M8 bolt
Wing nut fastening
Zinc-coated die-cast brass
12-24V		 view
ACPK003N-8 NEG terminal
Nautical type
With M8bolt
Wing nut fastening
Zinc-coated die-cast brass
12-24V		 view
ACPK002P-10 POS terminal
Nautical type
With M10 bolt
Nut fastening
Zinc-coated die-cast brass
12-24V		 view
ACPK002N-10 NEG terminal
Nautical type
With M10 bolt
Nut fastening
Zinc-coated die-cast brass
12-24V		 view
ACPK102P-10 POS terminal
Nautical type
With metal bearing M10 (no bolt)
Nut fastening
Zinc-coated die-cast brass
12-24V
ACPK102N-10 NEG terminal
Nautical type
With metal bearing M10 (no bolt)
Nut fastening
Zinc-coated die-cast brass
12-24V
ACPK010P POS terminal
Industrial type
Fastening to wire
With M10 bolt
Zinc coated die-cast brass
12-24V		 view
ACPK010N NEG terminal
Industrial type
Fastening to wire
With M10 bolt
Zinc coated die-cast brass
12-24V		 view
ACPK014P POS terminal
Industrial type
Fastening to wire
With M12 bolt
Zinc coated die-cast brass
12-24V		 view
ACPK014N NEG terminal
Industrial type
Fastening to wire
With M12 bolt
Zinc coated die-cast brass
12-24V		 view
ACPK002P-12 POS terminal
With M12 bolt
Nut fastening
For Henschel-MAN, DAF trucks and tractors
12-24V
ACPK002N-12 NEG terminal
With M12 bolt
Nut fastening
For Henschel-MAN, DAF trucks and tractors
12-24V
ACPK004P POS terminal
Renault type
Fastening to wire M8		 view
ACPK004N NEG terminal
Renault type
Fastening to wire M8		 view
ACPK035P POS terminal
Fastening to wire 3x M6
Zinc-coated die-cast brass
12-24V		 view
ACPK036N NEG terminal
Fastening to wire 3x M6
Zinc-coated die-cast brass
12-24V		 view
ACPK001P POS terminal
Alpha type
Heavy "T"
10-50 mm²
Zinc-coated die-cast brass
12-24V 		view
ACPK001N NEG terminal
Alpha type
Heavy "T"
10-50 mm²
Zinc-coated die-cast brass
12-24V 		view
ACPK022P POS terminal
Straight Alpha type
Reinforced
10-70 mm²
Die-cast brass
With alloy plate
12-24V		 view

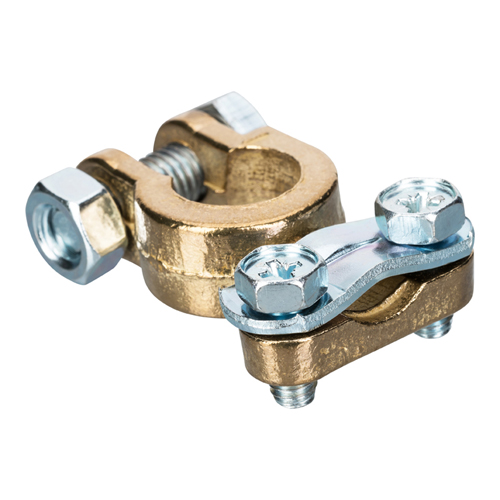

ACPK022N NEG terminal
Straight Alpha type
Reinforced
10-70 mm²
Die-cast brass
With alloy plate
12-24V		 view
ACPK037P POS terminal
Straight Alpha type
16-25 mm²
Die-cast brass
12-24V
ACPK037N NEG terminal
Straight Alpha type
16-25 mm²
Die-cast brass
12-24V
ACPK005P POS terminal
Alpha type
For European cars
10-35 mm²
Die-cast brass
With alloy plate
12V
ACPK005N NEG terminal
Alpha type
For European cars
10-35 mm²
Die-cast brass
With alloy plate
12V
ACPK008P POS terminal
Alpha type
Small clamp for Japanese cars
10-35 mm²
Die-cast brass
12V		 view
ACPK008N NEG terminal
Alpha type
Small clamp for Japanese cars
10-35 mm²
Die-cast brass
12V		 view
ACPK012P POS terminal
Heavy Alpha type
10-70 mm²
Die-cast brass
12-24V		 view
ACPK012N NEG terminal
Heavy Alpha type
10-70 mm²
Die-cast brass
12-24V		 view
ACPK009P POS terminal
Alpha type
Reinforced
10-50 mm²
Die-cast brass
With alloy Plate
12-24V		 view
ACPK009N NEG terminal
Alpha type
Reinforced
10-50 mm²
Die-cast brass
With alloy Plate
12-24V		 view
ACPK017P POS terminal
Alpha type
Double plate
10-50 mm²
Zinc-coated die-cast brass
12-24V		 view
ACPK017N NEG terminal
Alpha type
Double plate
10-50 mm²
Zinc-coated die-cast brass
12-24V		 view
ACPKCUBE101 POS terminal
For use with CubeOTO fuses
With insulation washer and self-fastening nut
Matching covers available		 view
ACPKCUBE201 POS terminal
For use with CubeOTO fuses
Use in combination with insulation nut CF-M8		 view
CF-M8 Insulation nut for use with ACPKCUBE201
QLAK001 Set of 2 terminals, POS and NEG
With quick release red and blue polypropylene cover
Fit to all SAE and DIN standard batteries
Steel terminals inside, copper plated
Resistance appr. 0,12 µ? at 10A
Certified to be safe up to 800A		 view
QLAKR01 POS terminal
With quick release red polypropylene cover
Fit to all SAE and DIN standard batteries
Steel terminals inside, copper plated
Resistance appr. 0,12 µ? at 10A
Certified to be safe up to 800A		 view
QLAKB01 NEG terminal
With quick release blue polypropylene cover
Fit to all SAE and DIN standard batteries
Steel terminals inside, copper plated
Resistance appr. 0,12 µ? at 10A
Certified to be safe up to 800A		 view
ACPK102SW Swan-type terminal
Copper plated zinc alloy
Fits 6, 12 or 24V top post batteries
Switch off power by turning green knob
Remove knob for anti-theft function
ACPK007P POS terminal
Ford battery adaptor
Die-cast brass
ACPK007N NEG terminal
Ford battery adaptor
Die-cast brass
ACPK024P POS terminal
Ford battery adaptor
Die-cast brass
ACPK024N NEG terminal
Ford battery adaptor
Die-cast brass
ACPKM80P Adaptor set, POS and NEG
For adapting Japanese to standard battery poles
Brass		 view
ACPK6872 Adaptor kit for converting top post batteries to side terminal batteries
Ground cable extension lead included

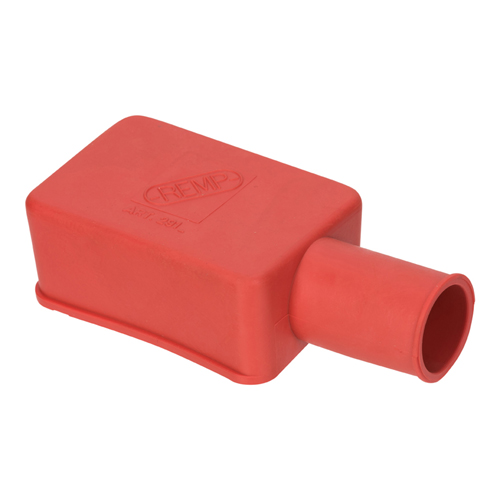

ADKA001R Terminal cap for ACPK010, ACPK014 and ACPK022
500A
POS, red

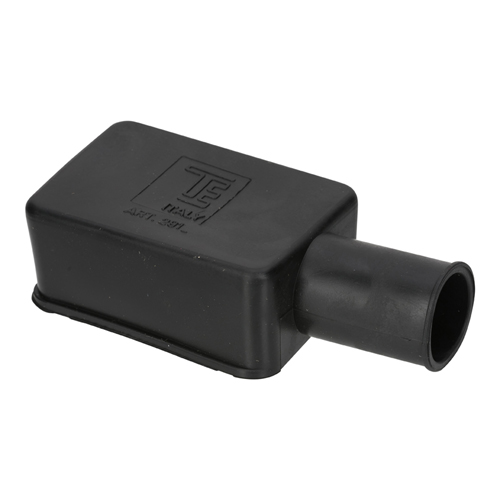

ADKA001B Terminal cap for ACPK010, ACPK014 and ACPK022
500A
NEG, black
ADKA002R Terminal cap elbow right for ACPK010 and ACPK014
POS, red
ADKA002B Terminal cap elbow right for ACPK010 and ACPK014
NEG, black

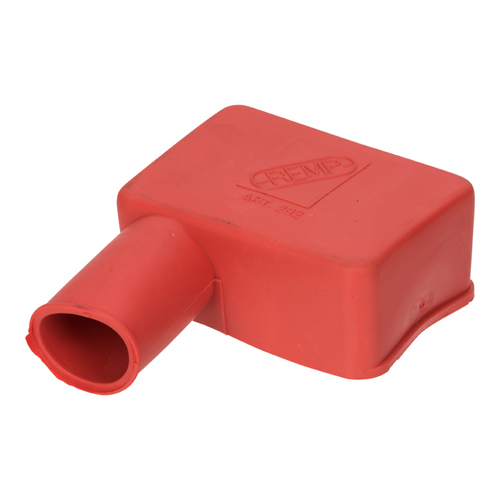

ADKA003R Terminal cap elbow left for ACPK010 and ACPK014
POS, red
ADKA003B Terminal cap elbow left for ACPK010 and ACPK014
NEG, black

Contact our specialists.
