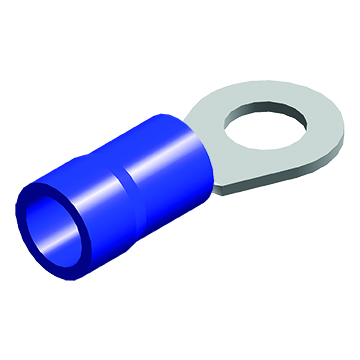

PVC Insulated Ring Terminals Standard

View pictures

features:

Max. electrical rating: 600 Volts
Max. operating temp: 75 °C.
Material: Copper
Plating: Electro tin plated
Insulation: PVC
  • RoHS compliant

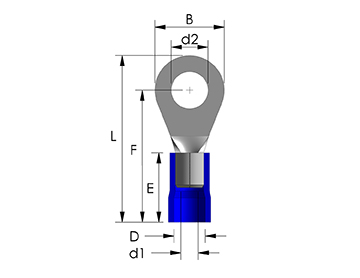

Prt nr. Wirerange mm² Color d2 B L F E D d1 UL Packed Datasheet
RBFV 1.25-3 0.5~1.5  red 3.2 5.5 17.5 5.0 10.0 4.3 1.7 10 x 100 view
RBFV 1.25-M3 0.5~1.5  red 3.7 6.6 19.4 6.3 10.0 4.3 1.7 10 x 100 view
RBFV 1.25-3.5L 0.5~1.5  red 3.7 8.0 20.8 7.0 10.0 4.3 1.7 10 x 100 view
RBFV 1.25-4 0.5~1.5  red 4.3 6.6 19.4 6.3 10.0 4.3 1.7 10 x 100 view
RBFV 1.25-5 0.5~1.5  red 5.3 8.0 20.8 7.0 10.0 4.3 1.7 10 x 100 view
RBFV 1.25-6 0.5~1.5  red 6.4 11.8 26.7 11.0 10.0 4.3 1.7 10 x 100 view
RBFV 1.25-8 0.5~1.5  red 8.4 11.8 26.7 11.0 10.0 4.3 1.7 10 x 100 view
RBFV 1.25-10 0.5~1.5  red 10.5 13.6 30.5 13.9 10.0 4.3 1.7 10 x 100 view
RBFV 1.25-12 0.5~1.5  red 13.0 18.0 34.0 15.0 10.0 4.3 1.7 10 x 100 view
RBFV 2-S3.3 1.5~2.5  blue 3.2 6.6 17.8 4.7 10.0 4.8 2.3 Y 10 x 100 view
RBFV 2-S3 1.5~2.5  blue 3.7 6.6 19.5 6.3 10.0 4.8 2.3 Y 10 x 100 view
RBFV 2-4 1.5~2.5  blue 4.3 8.5 21.8 7.8 10.0 4.8 2.3 Y 10 x 100 view
RBFV 2-5S 1.5~2.5  blue 5.3 8.5 21.8 7.8 10.0 4.8 2.3 Y 10 x 100 view
RBFV 2-5 1.5~2.5  blue 5.3 9.6 22.0 7.3 10.0 4.8 2.3 Y 10 x 100 view
RBFV 2-6 1.5~2.5  blue 6.4 11.8 26.9 11.0 10.0 4.8 2.3 Y 10 x 100 view
RBFV 2-8 1.5~2.5  blue 8.4 11.8 26.9 11.0 10.0 4.8 2.3 Y 10 x 100 view
RBFV 2-10 1.5~2.5  blue 10.5 13.6 30.5 13.6 10.0 4.8 2.3 Y 10 x 100 view
RBFV 2-12 1.5~2.5  blue 13.0 18.0 34.0 15.0 10.0 4.8 2.3 Y 10 x 100 view
RBFV 5.5-3 4~6  yellow 3.7 7.2 22.7 6.1 13.0 6.7 3.4 Y 10 x 100 view
RBFV 5.5-S4 4~6  yellow 4.3 7.2 22.7 6.1 13.0 6.7 3.4 Y 10 x 100 view
RBFV 5.5-4 4~6  yellow 4.3 9.5 26.5 8.9 13.0 6.7 3.4 Y 10 x 100 view
RBFV 5.5-5 4~6  yellow 5.3 9.5 26.5 8.9 13.0 6.7 3.4 Y 10 x 100 view
RBFV 5.5-6 4~6  yellow 6.4 12.0 29.5 10.5 13.0 6.7 3.4 Y 10 x 100 view
RBFV 5.5-8 4~6  yellow 8.4 15.0 34.0 13.5 13.0 6.7 3.4 Y 10 x 100 view
RBFV 5.5-10 4~6  yellow 10.5 15.0 34.0 13.5 13.0 6.7 3.4 Y 10 x 100 view
RBFV 5.5-12 4~6  yellow 13.0 19.2 38.6 16.0 13.0 6.7 3.4 Y 10 x 100 view
